Article details

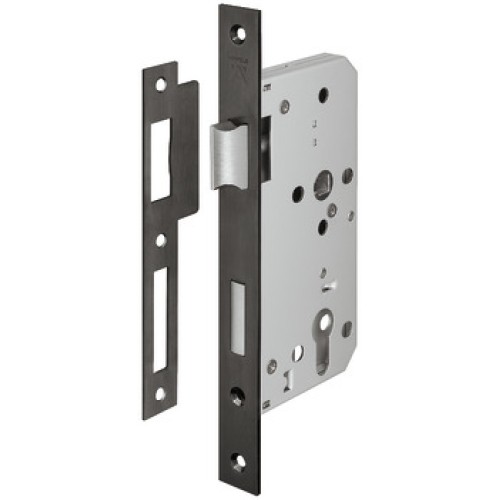

Latchbolt operated by lever handles, deadbolt operated by cylinderCase: Steel, 15 mm wideForend: Square or radius. Stainless steel, 24 mm wideStrike plate: Square, flat. Included. Stainless steelLatchbolt follower: 8 mm. For use with sprung or unsprung furnitureDeadbolt follower: Euro profile cylinderDIN left and DIN right, reversibleHoled for bolt through furniture at 38 mm centres
Certified in compliance with EN 12209:200372 mm lock centresApproved CF 5395 CertifireSuitable for use in FD30/60 & 90 minute Timber fire doors when fitted with the accompanying fire protection intumescent kit. These cylinder locks have been tested on a min. 44 mm thick timber door for 30 mins fire resistance or min. 54 mm thick doors for 60 mins fire resistanceCE markedTested in accordance with BS EN 12209
Lock typePC
Distance72 mm
Backset55 mm
Forend width24 mm
Door constructionUnrebated
Lever follower8 mm
MountingDIN left/right (reversible)
MaterialStainless steel
Latchbolt versionStandard latch
For door type
Revolving door, Fire resistant and smoke control doors
Version
Strike plate with bolt pocket
Version
With key action
Colour/finish
Graphite black
PVD coated
Forend length
235 mm
Deadbolt version
Standard deadbolt
Standard
Certified in compliance with EN 12209: 2003
Classification in compliance with EN 12209
3|S|8|1|0|F|2|B|C|2|0
Häfele Lifetime Guarantee
10 years
Order reference
Cylinder not included, please order separately
Supplied with
Strike plate: Square, flatFixings
Warranty/guarantee information
This product is covered under Häfele’s Lifetime Guarantee.All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.For more information go to:Services > Customer Support > Häfele Lifetime Guarantee
