Article details

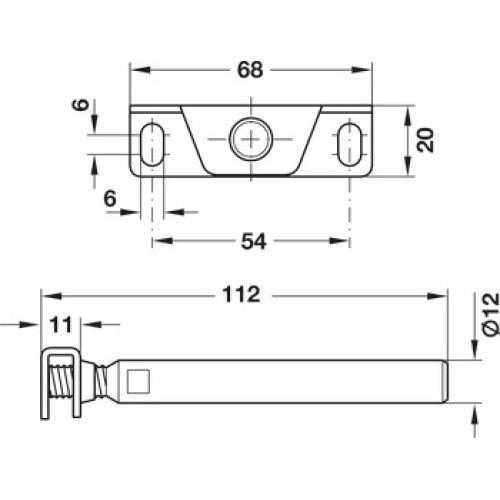

Supporting pin is installed in a Ø 12 mm hole in the shelf, the pin may be exposed or concealed depending on the thickness of the shelfHeight adjustable via slotsInclination adjustment using supporting pin which presses on the rear plate when turned in
Area of application
For installation into woodwork or masonry walls
Material
Steel
For shelf depth
≤300 mm
Load bearing capacity
80 – 200 kg
Note on load bearing capacity
Load bearing capacity (with shelf support spacing = max. 700 mm and evenly distributed load)
Installation
For screw fixing to support elementFor mounting in drilled hole in shelf
Order reference
Hospa Screw Ø 5.0 mm is not supplied. Please order separately
Supplied with

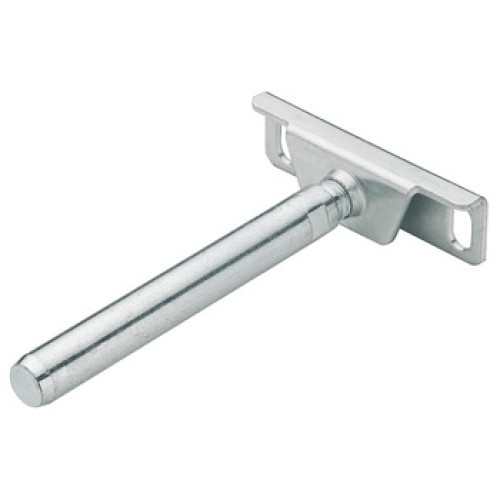

1 Supporting pin with mounting plate, galvanized steel
Technical data attributes
Configuration required
