Article details
Shelf clamped between a layer of ridged plastic on both the lower and upper sidesThese shelf supports can be spaced every 400-500 mm, depending on the use, load, material and thickness of the shelfEasy alignment of the brackets against the wall
Area of applicationfor glass shelves
For shelf thickness5 – 10 mm

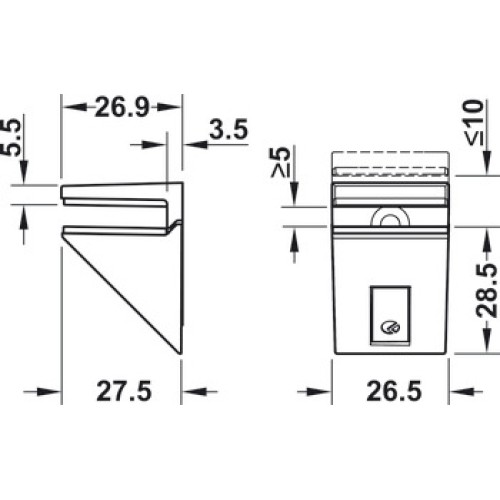

Dim. (W x D x H)
Colour/finish
Version
with rubber pad at bottom and top
Material
Zinc alloy
Load bearing capacity per item
6 kg
Note on load bearing capacity
recommended load-bearing capacity
For shelf depth
≤150 mm
Adjustment facility
Height adjustment via elongated hole: ±2 mm
Installation
Screw fixing
Area of application
For glass shelves
Order reference
Order Hospa countersunk 5.0 mm screws separately
Supplied with
Clamping screw, plastic cover and instructions
Additional information attributes
The load bearing capacity of the shelf supports depends on the shelf material, the shelf depth and the type of wall to which they are being attached.
