Article details
High quality internal straight sliding door gear for residential and commercial applicationsUnique design allows doors up to 55 mm thick to be installed in a finished wall of 100 mmCan be cut to suit standard UK door sizes or large customer doorsSupplied as a kit to create the pocket, once cut this can be assembled in 10-20 minutes by a skilled installerFinished jambs are normally made by the door installer, but kits are available on requestFor single doors only, for bi-parting doors please contact us
The rigidity of the pocket wall be improved when the interior finish kit is installed. For maximum wall rigidity please use Slido 80/B
For door height
2,100 mm
Note on door weight
80 kg with soft close
Häfele Lifetime Guarantee
10 years
Order reference
Finishing kits and accessories to be ordered separately
Supplied with

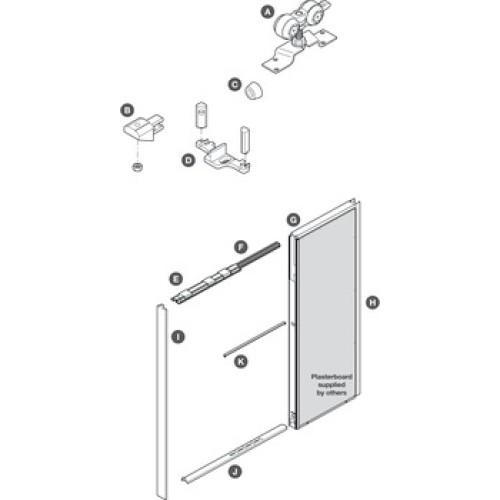

Set consists of 2 x Trolley hangers, for sliding door, bracket length 102 mm, aluminium/plastic, 1 x Track stopper, 23 x 25 x 48 mm, aluminium, 1 x Door buffer, ⌀ 19 mm, screw fixing, rubber, 1 x Floor guide, 34 x 30 x 81 mm, floor mounted or side mounted, plastic, 1 x Top rail and track, marked for cut to UK door size, aluminium, 1 x Top profile, marked for cut to UK door size, aluminium, 2 x Studwork mountings, aluminium, 1 x Rear pillar, aluminium, 1 x Front profile, aluminium, 1 x Floor installation profile, aluminium, 1 x Centre installation profile, aluminium
Warranty/guarantee information
This product is covered under Häfele’s Lifetime Guarantee.All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.For more information go to:Services > Customer Support > Häfele Lifetime Guarantee
Technical data attributes
