Article details

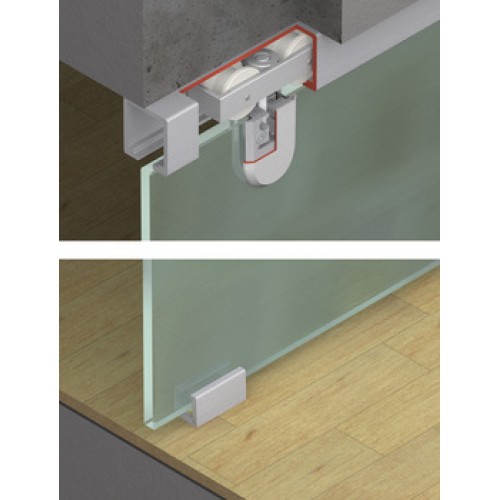

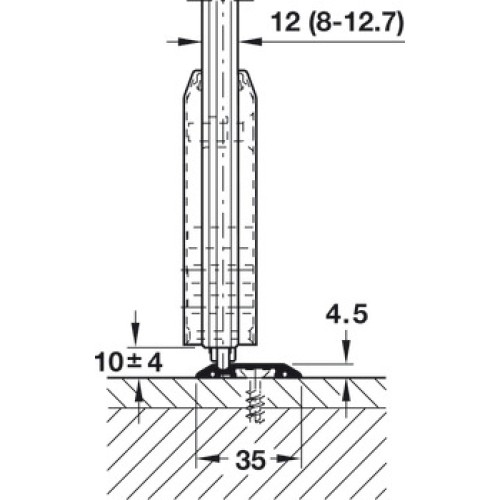

Vertically adjustable sliding door fitting for low and restricted headroom applicationsTandem rollers made of high-grade polyamide, mounted in an aluminium carriage, ensures exceptionally silent actionAll parts are corrosion resistantTop of the glass panel close to underside of top trackChoice of bottom control - either clear threshold or floor channel to provide added stability for wider doors
Suitable for
Minimum installation height
Number of doors per system max.
1 to 2
For glass type
Tempered safety glass, Laminated glass
For door height
≤2,300 mm
Installation
Suspension with hanger bolt, Point fixing with glass retainer
Door processing
With glass preparation
Standard
Certified in compliance with EN 1527:2013
Classification in compliance with EN 1527
-|6|3|-|1|0|-|1|3
Order reference
Tracks, accessories and Hospa Ø 4.0 mm countersunk screws to be ordered separately
Supplied with

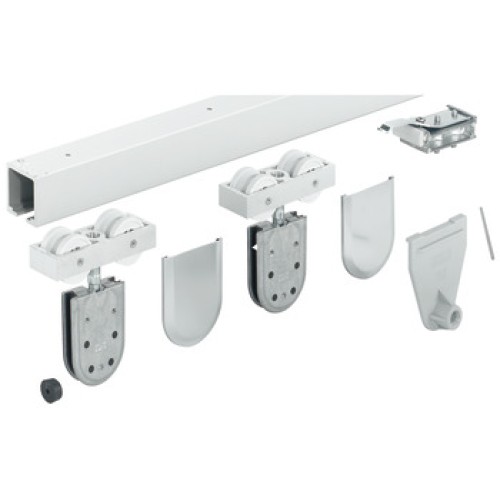

2x Trolley hanger2x Track stopper1x Rubber buffer1x Glass panel drilling jig
Technical data attributes
Configuration required
Configuration required
Configuration required
Additional information attributes
With 2-leaf sliding doors it has to be ensured that the glass doors are not butting against each other.Use guide tracks with end stop.
