Article details
low wear and tearquiet operationNo clamping shoe cover available
Number of doors per system max.
1 to 2
For glass type
Tempered safety glass
Installation
Suspension with clamping shoe
Door processing
Without glass preparation
Standard
Certified in compliance with EN 1527:2013
Classification in compliance with EN 1527
-|6|1|-|1|0|-|1|3
Order reference
Tracks, fittings and fixings to be ordered separately
Supplied with

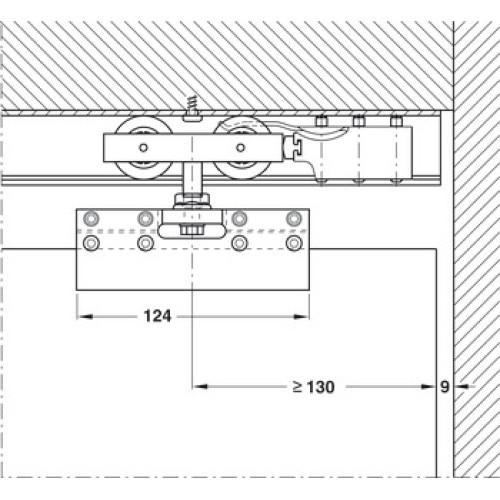

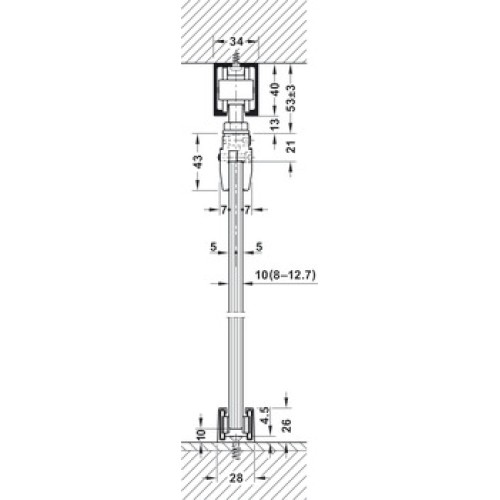

2 x Trolley hanger, sleeve bearing mounted, Ø 34 mm high grade polyamide tandem roller, complete with fastening materials, 2 x Clamping shoe set, 125 x 18 mm, adjustable clamp for 8-12.7 mm thick glass with M10 pendant bolt and locknut, vertically adjustable, bright aluminium, 2 x Track stopper, for adjustable mounting top track, zinc alloy, 1 x Rubber buffer, Ø 20 x 10 mm, screw fixing
Technical data attributes
Configuration required
Configuration required
Configuration required
Additional information attributes
If a panel is installed, it must not protrude the lower edge of the track so that the door can be swivelled in and out.
