Article details

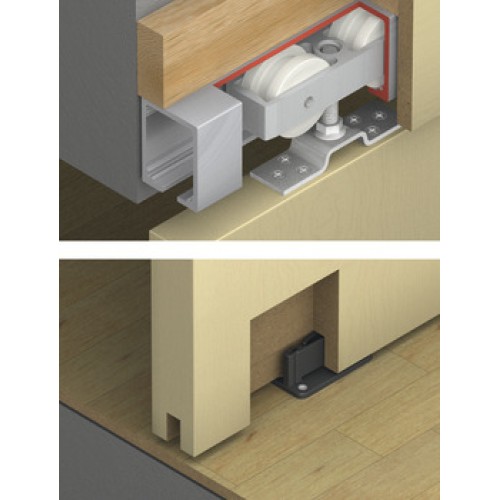

Exceptionally light and silent actionAll parts are corrosion resistantIdeal for heavier duty cavity applications

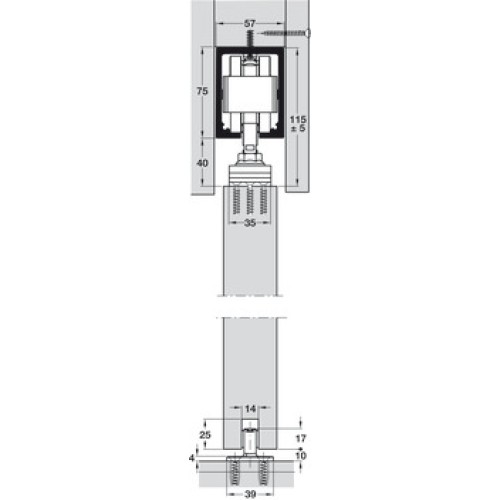

If the sliding door is required to stop at both ends we recommend installing an additional track stopperInstallation drawing reference 17689
Number of doors per system max.
1 to 2
Adjustment facility
side adjustment
Installation
Suspension with suspension bar
Door processing
for screw fixing
Standard
Certified in compliance with EN 1527:2013
Classification in compliance with EN 1527
-|6|3|-|1|0|-|1|3
Order reference
Tracks, accessories and fixings to be ordered separately
Supplied with

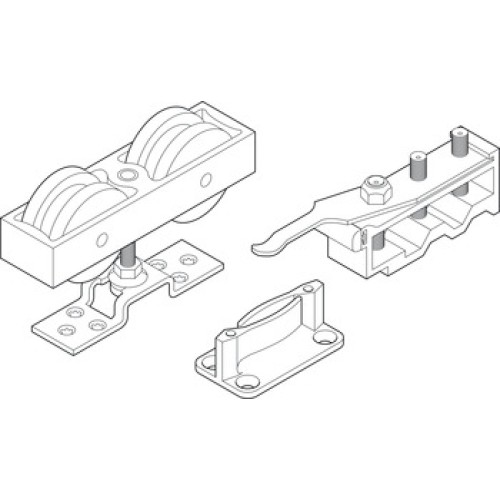

2x Running gears2x Suspension bars2x Track buffers1x Floor guide with zero clearance1x Height adjustment spanner
Technical data attributes
Configuration required
Configuration required
Configuration required
