Article details
Junior 40 is a vertically adjustable sliding door fitting for light to medium weight interior doors, for top quality joinery and partitioningSuitable for low and restricted headroom applications
If the sliding door is required to stop at both ends we recommend installing an additional track stopperInstallation drawing reference 17689
Number of doors per system max.
1 to 2
For door height
≤4,000 mm
Note on door width
The max. door width for the pocket door solution is 1,250 mm.
Functionality
subsequent disassembly of the running track without opening the wall is possible, the running gear and the soft and self closing mechanism can be removed, stopper position can be readjusted in wall pocket
Installation

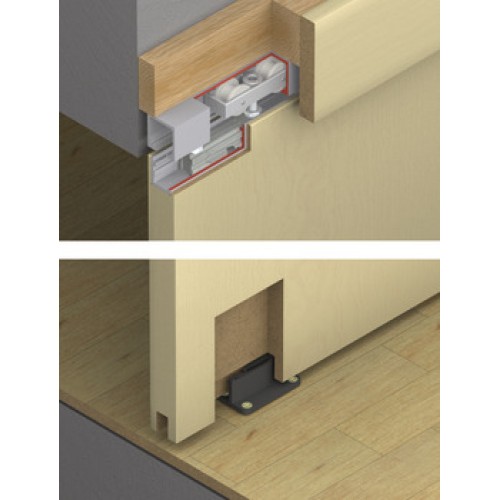

Suspension with recessed support profile
Installation reference
Pocket door solution: subsequent disassembly of the running track is possible without opening the wall, running gear and soft and self closing mechanism can be removed, Stopper position in the wall pocket , readjustable
Door processing
With recess
Standard
Certified in compliance with EN 1527:2013
Classification in compliance with EN 1527
-|6|1|-|1|0|-|1|3
Order reference
Tracks and accessories to be ordered separatelyHospa Ø 4.0 mm pan head and Ø 4.5 countersunk screws to be ordered separately
Supplied with

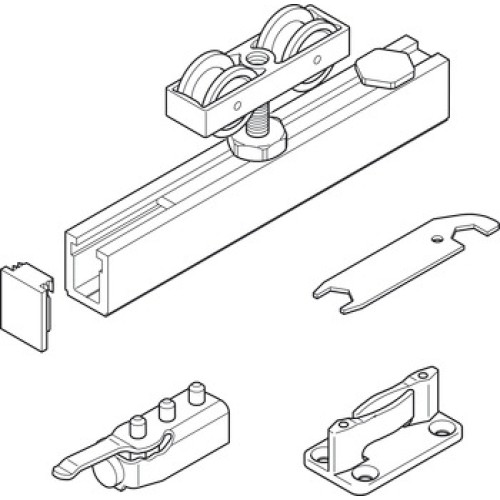

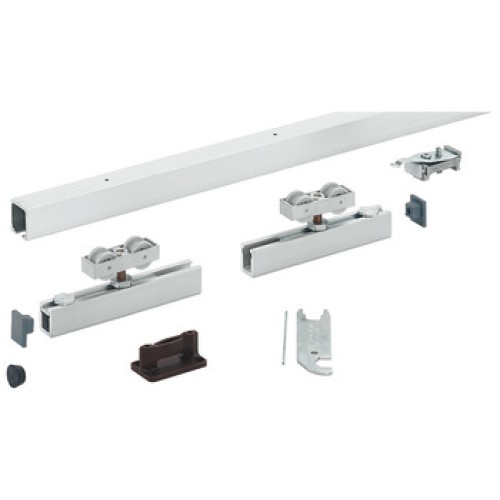

2x Running gears2x Support profiles with suspension carriage, M82x Cover caps for support profile2x Track buffers with retaining spring1x Floor guide with zero clearance1x Spanner for suspension carriage1x Hex key, 4 mm
Technical data attributes
Configuration required
Configuration required
Configuration required
