Article details
Smooth running quality system for commercial and residential interior doors with a small space between the top of the door and bottom of the track is required
Suspension with recessed flange clip without toolsTrolley hangers have four ball bearing rollersTested to EN1527:2013, 100,000 cycles
Number of doors per system max.
1 to 2
Note on door width

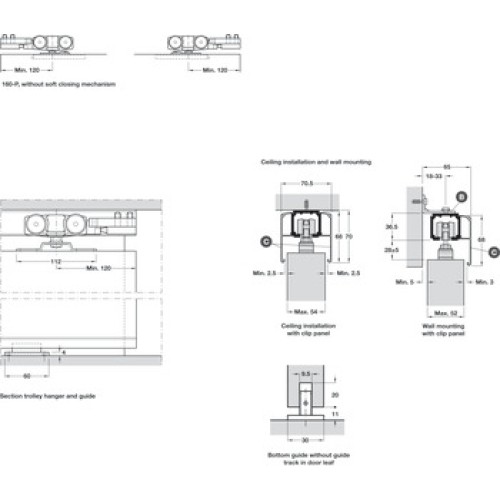

Ceiling installation with clip panel - Max. 54 mmWall mounting with clip panel - Max. 52 mm
Adjustment facility
height adjustment
Installation
Positive-fit clamp connection (without tools)
Door processing
With recess
Häfele Lifetime Guarantee
10 years
Order reference
Tracks and accessories to be ordered separately
Supplied with

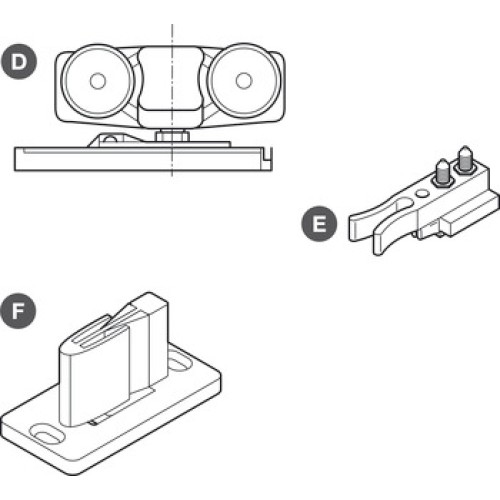

Fitting set consists of:2x Running gear, 4 rollers, flange clip for hooking-in, nickel plated zinc2x Track buffer, with retaining spring and rubber buffer, grey plastic1x Bottom guide, 24 x 60 x 30 mm, black plastic
Warranty/guarantee information
This product is covered under Häfele’s Lifetime Guarantee.All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.For more information go to:Services > Customer Support > Häfele Lifetime Guarantee
Technical data attributes
Configuration required
Configuration required
Configuration required
Additional information attributes
End cap for ceiling installation with fascia on both sides not available. One pair of end caps can be glue fixed vertically in the centre of the running track (optional).
