Article details
A range of systems for straight sliding timber doors to allow two, three or four doors to slide togetherFor internal residential or commerical applicationsSoft close is standard for two doors bi-parting, telescopic and four doors telescopic bi-parting
Suitable for
Commercial and public buildings
For door height
≤2,300 mm
Order reference
Top track and additional fitting set (if required) to be ordered separately
Supplied with

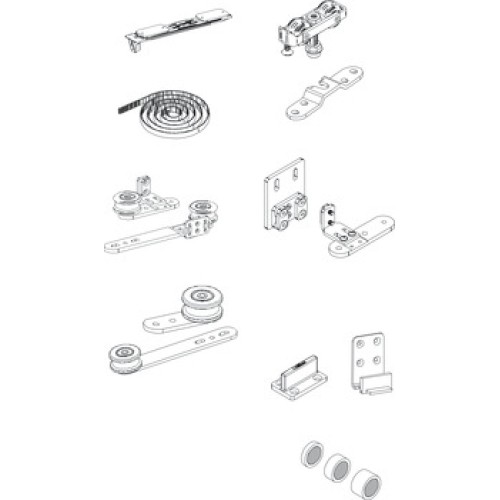

Fitting set for 3 doors with soft brake, max. door weight 80 kg, includes 6 x Standard trolley hangers, aluminium/polyamide, steel bearings, 2 x Soft brake activation mechanisms, 6 x Trolley hanger mounting brackets, aluminium, 1 x Bottom guide, floor mounted, plastic, 2 x Tooth belt, polyurethane, 1 sets x Fixing clamp set for belt, steel, 1 set x Guide pulley set, 2 sets x Telescopic progressive roller set, aluminium/polyamide, steel bearings, 2 x Bottom guides, door mounted, for second door, 10 sets x Track spacer set, 5 x or 10x of 5-10-15 mm spacers included and fixings
Technical data attributes
Configuration required
Configuration required
Configuration required
