Article details
Junior 80 is a vertically adjustable sliding door fitting for interior doorsExceptionally light and silent actionAll parts are corrosion resistantIdeal for cavity applications

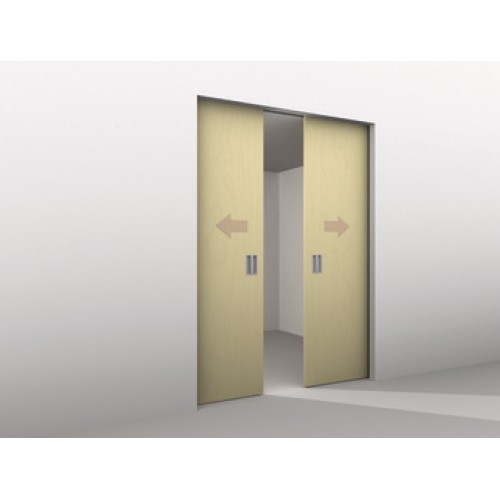

Installation drawing reference 17689Symmetric 80 to allow simultaneous operation of two bi-parting doors operating on Junior 80 SystemFor 2 sliding doors of max. 1200 mm width eachInstallation drawing reference 20663 for Symmetric 80Soft Close Mechanism not suitable for use with this set
Number of doors per system max.
2
Door processing
for screw fixing
Order reference
Hawa-Junior 80 tracks and fitting sets to be ordered separately
Supplied with

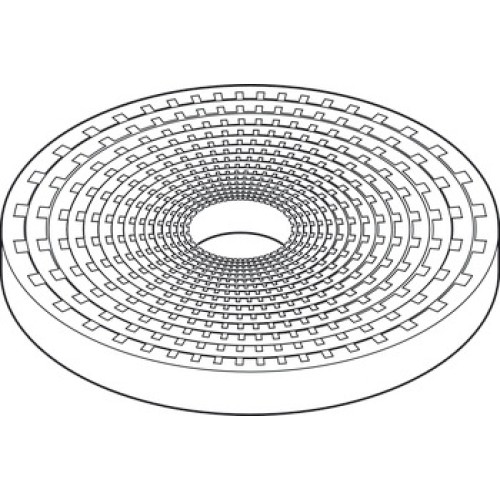

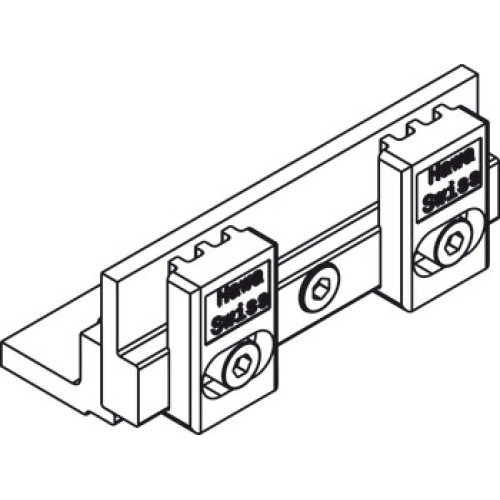

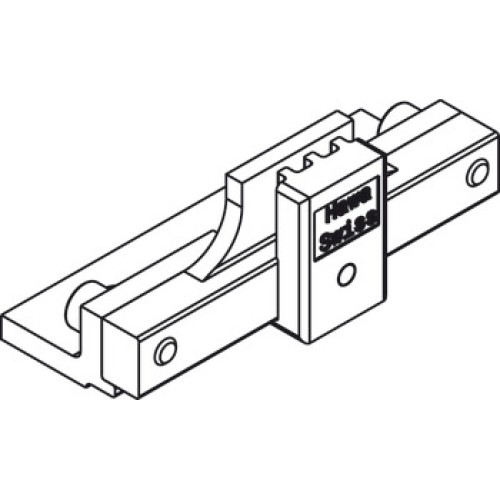

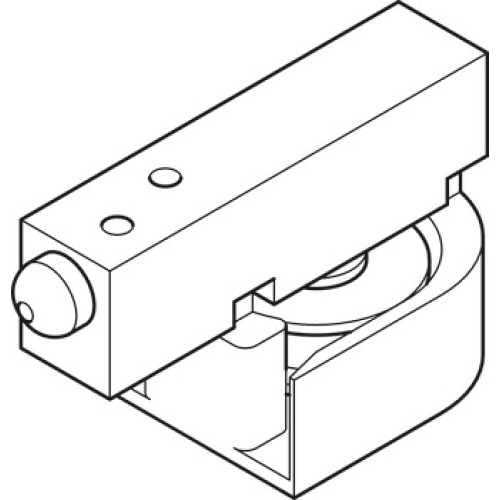

Set consists of 2 x Guide roller, track mounted with rubber stopper, 2 x Clamp, for fastening the toothed belt, 1 x 10 m length of Toothed belt, transparent polyurethane with metal insert, black, fibre-glass reinforced
Technical data attributes
Configuration required
Configuration required
Configuration required
