Junior 80/B system for wall pocket installation
Version: Min. installation height, vibration transmission (structure-born sound) reduced by a separation layer between running track and fixing profileInstallation: Suspension with recessed support and integrated suspension, carriage, easy insertion of the door into the construction, clear threshold running installation in pre-mounted fixing profile using bayonet lock with insertion slopeDisassembly: Running track up to 3m can also be removed in fixing pocket constructions, this allows replacing or retrofitting individual components at any timeAvailable with 20 mm longer bolt version which allows the track to be covered from below with removable ceiling elementsOptional: Spring buffer for convenient ejection of the doorOptional: Hawa-SoftMove 80 soft and self closing mechanism (SoftMove 70 cannot be used in combination with spring buffer)
ModelJunior 80/B-Pocket
Soft closing mechanismWithout soft and self closing mechanism, with track buffer on one side, with wall buffer on one side
For door weight≤80 kg
For door width
For door materialWood
Controller installation optionsCeiling installation, Integrated ceiling installation, Wall pocket solution
For door thickness
Adjustment facility
Number of doors1
Suitable for
Wall pocket solution
Number of doors per system max.
1
For door height
≤4,000 mm
Functionality
Junior 80/B system for wall pocket installation. Height adjustable.For 1-leaf sliding doors for wall pocket installation.
Installation
Suspension with recessed support profile and integrated suspension carriage
Installation reference
subsequent disassembly of the running track is possible without opening the wall, running gear and soft and self closing mechanism can be removed, stopper position in the wall pocket is readjustable
Door processing
With recess
Standard
Certified in compliance with EN 1527:2013
Classification in compliance with EN 1527
-|6|2|-|1|0|-|1|3
Order reference
Tracks and accessories to be ordered separately
Supplied with

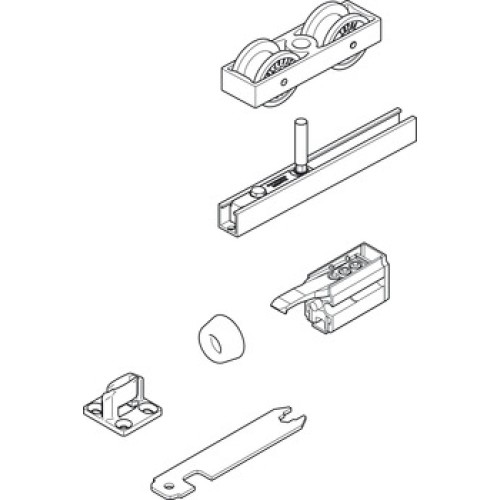

2x Running gears (2 rollers) with support profile, suspension carriage and long hanger bolt M10 (+20 mm)1x Door stopper, clip-on, with retainer1x Wall buffer1x Floor guide, clear threshold, for groove width 10 mm1x Spanner for suspension carriage
Technical data attributes
Configuration required
Configuration required
Configuration required
Additional information attributes
A second track buffer (940.80.040) is required when the soft and self closing mechanism amd spring buffer are not being used
