Article details
Exceptionally light and silent actionAll parts are corrosion resistingA version of Junior 80 for top hung metal straight sliding doors

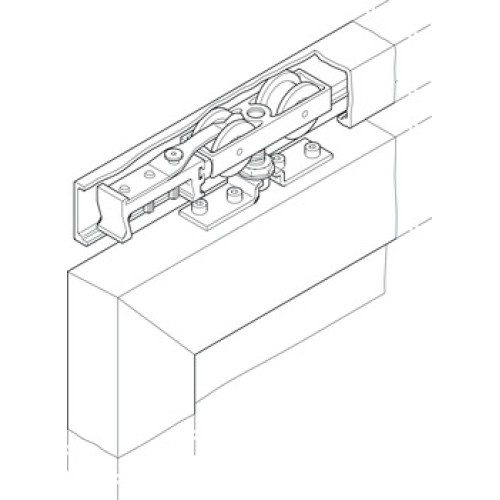

If the sliding door is required to stop at both ends we recommend installing an additional track stopperInstallation drawing reference 18182
Suitable for
Wet rooms
Installation
Suspension with hanger bolt, Positive-fit clamp connection (without tools)
Order reference
Tracks, accessories and fixings to be ordered separately
Supplied with
Fitting set for one door consists of 2 x Junior 80/M track stopper, for adjustable mounting in top track, zinc alloy, black painted housing, adjustable retaining force, 2 x Junior 80/M trolley hanger, sleeve bearing mounted Ø 34 mm high grade polyamide tandem rollers, galvanised steel fixing plate with M10 hanger bolt, fixing included, 1 x Guide, clear threshold applications only, for screw mounting to floor, grey plastic, 30 x 80 x 30 mm, 1 x Rubber buffer. Ø 19 x 10 mm, for screw fixing
Technical data attributes
Configuration required
Configuration required
Configuration required
