Article details

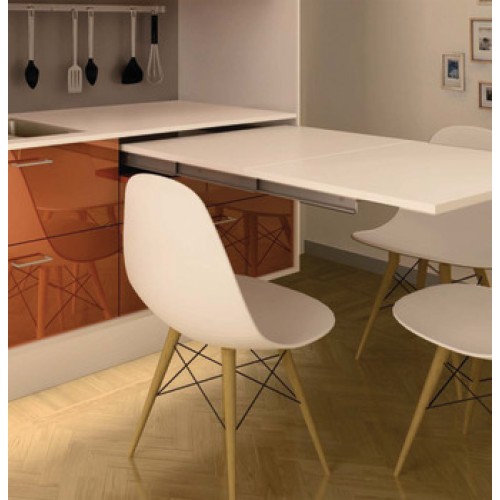

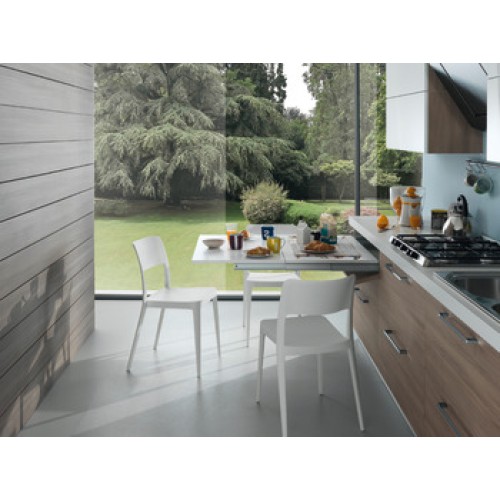

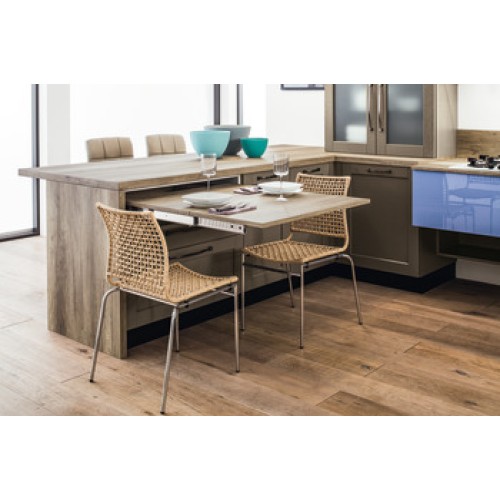

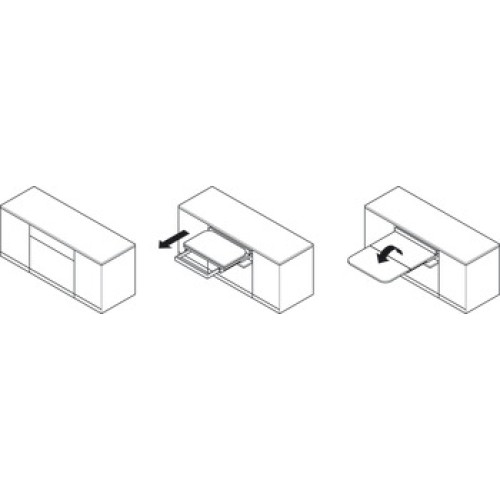

Pull out table instead of a drawer, maintains uniform front designSeating for up to 5 people
Colour/finishMechanism: Galvanised, Guide profile: Silver coloured anodised
Area of application
For kitchen and living room furniture, behind folding drawer front panels
Material
Guide profile: AluminiumMechanism: Steel
Internal installation depth
540 mm
Load bearing capacity
60 kg
Dimensions

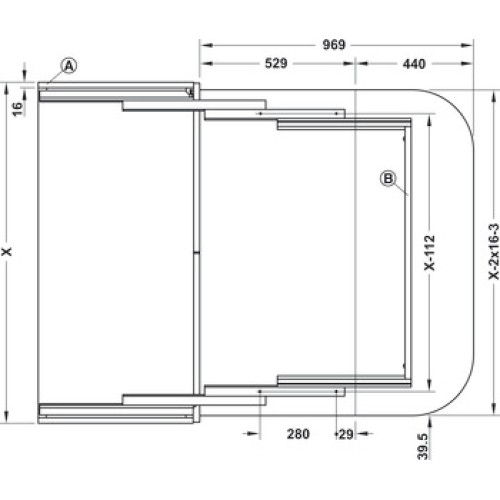

Table top length 969 mm, table top width = internal cabinet width - 3 mm
Installation reference
Order reference
Table top not supplied. Please order hinges for drawer front panel and folding table hinges separately.
Supplied with
1 pair of running tracksFixing materialInstallation instructionsWithout table top
Additional information attributes
ecure cabinet to prevent topplingThe system is designed to suit side thickness A 16 mm. The connecting profile B must be shortened by 1.5 mm on both sides when using 19 mm thick side panels
