Minifix GV Mitre Joint M6/24mm Steel Galvanised - Steel; Steel
Minifix GV Mitre Joint M6/24mm Steel Galvanised - Steel; Steel
- For screwing into sleeves or dowels, for installation in Ø 8 mm or Ø 10 mm holes
Area of application
- For mitre angles from 90° to 180°
- Bolt hole
- 7 mm
Order reference
- Screw in sleeves and dowels with M6 internal thread are available to order separately
Configuration required
- Additional information attributes

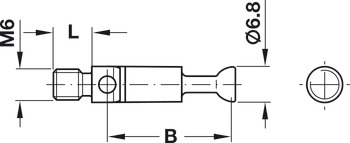

- The inset distances F in mm in the following table apply to mitre-joint connecting bolts with a drilling dimension B of 44 mm. 20 mm must be deducted from the specified inset distances F for drilling dimension B of 24 mm. The dimension for drilling depth D corresponds to the drilling depth D of the Minifix® connector housing that is used.Please use connector housing without flanged rim.
The Minifix GV Mitre Joint M6/24mm Steel Galvanised (product code 262.12.840) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Steel; Steel, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 262.12.840 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 262.12.840
- Material
- Steel; Steel
- Pack Quantity
- 100 Each
100 In stock
£0.97
Ex. VAT: £0.81
Sold in packs of 100 — £97.04 per pack
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 packs | £0.97 | — |
| 10+ packs | £0.87 | Save 10% |
| 10+ packs | £0.78 | Save 20% |
- Technical Specifications
- Dimensions
| Material | Steel; Steel |
| Thread Diameter | M6 |
