Concealed Shelf Support for Installation into Masonry Walls Hardened steel
Concealed Shelf Support for Installation into Masonry Walls Hardened steel
Area of application
- For concealed mounting of shelvesFor installation into woodwork or masonry wallsSuitable for all domestic applications, especially shelving systems, radiator screens and telephone supports
- Note on load bearing capacity
- The load bearing capacity of the shelf support is dependent on: Shelf materialShelf depthProperties and condition of wall
Order reference
- More than 2 pcs may be required per shelf depending on shelf weight and dimensions
Configuration required
The Concealed Shelf Support for Installation into Masonry Walls Hardened steel (product code 283.30.038) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Steel, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 283.30.038 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 283.30.038
- Material
- Steel
- Pack Quantity
- 1 Each
68,483 In stock
£2.67
Ex. VAT: £2.23
- Technical Specifications
| Material | Steel |
| Supplied with | 1x Supporting pin with screw, hardened steel1x Washer, galvanized steel1x Wall plug, SR 10 60 mm, grey nylon |

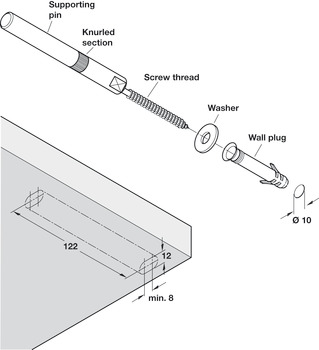

| Installation | Drill Ø 10 mm hole and insert wall plugSlip washer (supplied) onto screw threadScrew shelf support into wall plugInstall shelf on support as far as the knurled sectionUse an SW 10 open-ended wrench for vertical adjustmentFinally push the shelf all the way to the wall |
