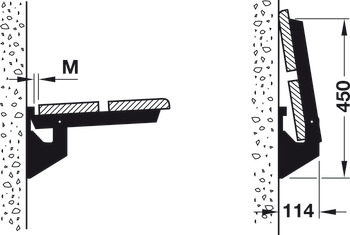

• When not in use, the bracket occupies the space specified in the table below. It is pre-drilled for the seat, which may be up to 40 mm thick
• The specified load bearing capacity applies:Only when used in pairsWith even load distribution (surface loads)With proper and reliable attachment to the wallThe fixing method depends on the wall material: Please check screws and wall plugs in accordance with the type of wall (use other fixing material if necessary).
• Product version
• Without pull-in spring
• Note on load bearing capacity
• 500 kg
• When not in use, the bracket occupies the space specified in the table below. It is pre-drilled for the seat, which may be up to 40 mm thick

Area of application

• Suitable for work surfaces and benches
• Version
• FoldingWithout pull-in spring
• Additional information attributes
• Max. distance between two brackets: 700 mm.The specified load bearing capacity applies only with even load distribution (surface load) and proper and reliable attachment to the wall.
