Concealed Cabinet Hanger Screw Fixing Koala Unhanded - Steel
Concealed Cabinet Hanger Screw Fixing Koala Unhanded - Steel
- Cabinet hanger concealed behind rear panel, only cover cap visible inside the cabinet
- 260 kg per pair (Load carrying capacity applies to 2 cabinet hangers bearing an evenly distributed load in accordance with regulation DIN 68840)
Area of application
- For hanging wall units
- 130 kg
- Three-way adjustment:Vertical adjustment: 11 mmHorizontal adjustment: 10 mmLateral adjustment: 12mm
Order reference
- Wall plates and cover caps must be ordered separately
- Additional information attributes

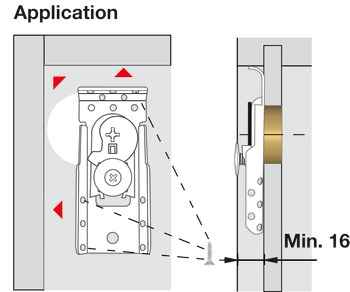

- Cabinet hangers should only be adjusted with a hand tool and not a power tool
The Concealed Cabinet Hanger Screw Fixing Koala Unhanded (product code 290.36.920) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Steel, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 290.36.920 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 290.36.920
- Material
- Steel
- Pack Quantity
- 1 Each
6,497 In stock
£1.79
Ex. VAT: £1.49
- Technical Specifications
| Material | Steel |
| Load bearing capacity | 65 kg; per pair |
| Installation | reference |
