• All stainless steel, ideal for areas where there may be hygiene, weathering or corrosion issuesSuitable for left or right hand applicationsMaintenance-free friction bearingsWhen fitted with intumescent kit 924.17.197 these hinges have been tested on a fire door to 60 minutes
• Max. adjusted door weight 120 kg
• Model series

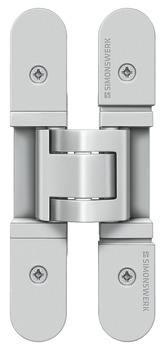

• TECTUS TE 526 3D

Area of application

• For wooden, steel or aluminium frames, for flush doors
• For frame type
• Steel frame, Wooden frame, Aluminium frame
• Door thickness
• ≥35 mm
• Router bit Ø
• 24 mm
• Thrust ring Ø
• 30 mm
• Bearing type
• Friction bearing, maintenance-free
• Adjustment facility
• 3D
• Continuous, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1 mm

Standard

• Certified in compliance with EN 1935:2002
• Grade
• 4|7|6|1|1|4|0|13

Order reference

• FD 60 fire rated when installed with intumescent kit Cat. No. 924.17.697, to be ordered separately
• Additional information attributes
• "Energy" version for permanent and invisible energy transmission from the door frame to the door leaf optionally available.
