Tectus TE540 3D 180D Hinge MN f2 - Aluminium, Steel
Tectus TE540 3D 180D Hinge MN f2 - Aluminium, Steel
- Suitable for left or right hand applicationsMaintenance free friction bearings
- MountingFor DIN left and DIN right hand use
- Flange shaperounded
- ModelTE 540 3D
- Model series
- TECTUS TE 540 3D
Area of application
- For wooden, steel or aluminium framesFor flush doors
- For frame type

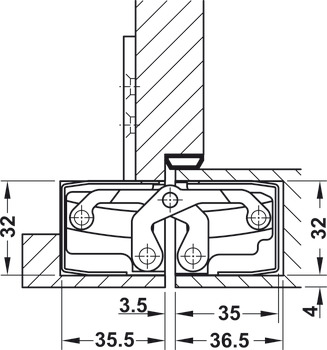

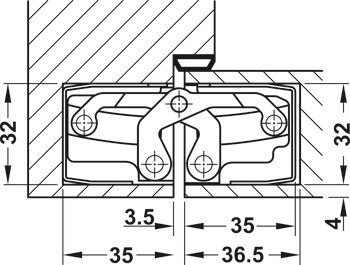

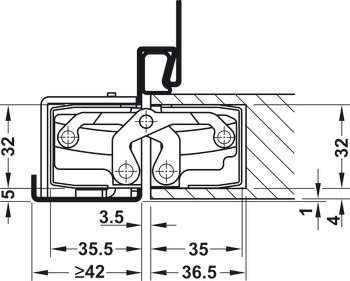

- Steel frame, Wooden/lining frame , Aluminium frame
- Max. door weight for 2 hinges
- 120 kg
- Door thickness
- ≥40 mm
- Router bit Ø
- 24 mm
- Thrust ring Ø
- 30 mm
- Adjustment facility
- 3D
- Continuous, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1 mm
Standard
- Certified in compliance with EN 1935:2002
- Grade
- 4|7|6|1|1|3|1|13
Order reference
- For 30 minute fire rating order intumescent kit separately
- Additional information attributes
- "Energy" version for permanent and invisible energy transmission from the door frame to the door leaf optionally available.
The Tectus TE540 3D 180D Hinge MN f2 (product code 924.17.222) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Aluminium, Steel, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 924.17.222 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 924.17.222
- Material
- Aluminium, Steel
- Pack Quantity
- 1 Each
12 In stock
£186.52
Ex. VAT: £155.43
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 2 | £186.52 | — |
| 3+ | £165.79 | Save 11% |
- Technical Specifications
- Dimensions
| Material | Aluminium, Steel |
| Opening angle | 180 ° |
| Supplied with | Fixing screws |

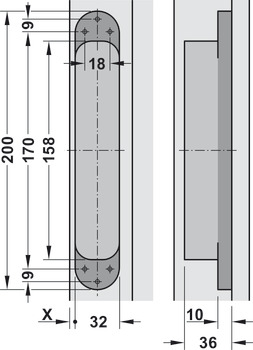

| Flange width | 32 mm |
| Flange height | 200 mm |
