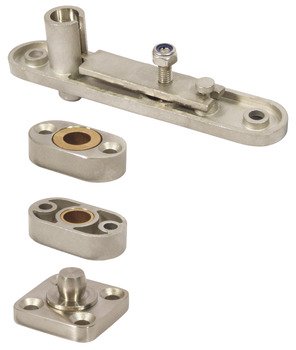

Pivot Set Double Action Floor Mounted Grade 304 Stainless Steel Allows doors to swing in either direction Satin - Stainless Steel, Quality 1.4301/AISI 304
Pivot Set Double Action Floor Mounted Grade 304 Stainless Steel Allows doors to swing in either direction Satin - Stainless Steel, Quality 1.4301/AISI 304
- Suitable for FD30 doors, tested to EN 1634-1Allows doors to swing in either directionDoor plates radiused for easy preparationBottom bracket is floor mounted and does not protrude beyond the door edgeTop and bottom plates have maintenance free oil impregnated bronze bearingsMaintenance free, guaranteed 25 years

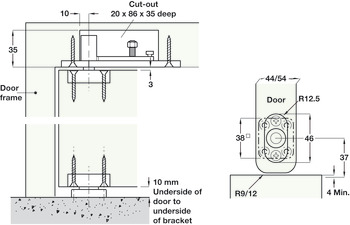

- 44 mm thick doors require R9 radius on pivot edge, 54 mm thick doors require R15 radius
- Additional information attributes
- It is recommended that both lock and hinge stiles are brush stripped for privacy
The Pivot Set Double Action Floor Mounted Grade 304 Stainless Steel Allows doors to swing in either direction Satin (product code 932.87.040) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Stainless steel, quality 1.4301/AISI 304, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 932.87.040 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 932.87.040
- Material
- Stainless steel, quality 1.4301/AISI 304
- Pack Quantity
- 1 Each
32 In stock
£150.32
Ex. VAT: £125.27
- Technical Specifications
| Material | Stainless steel, quality 1.4301/AISI 304 |
| Supplied with | Set includes door bottom pivot, top centre and Ø 5 mm door bracketsFixings |
