0330 BB Side Drawer Runner Full 50kg 300mm HGSS - Grade 304 Stainless Steel (1.4301 X 5Cr Ni 1810)
0330 BB Side Drawer Runner Full 50kg 300mm HGSS - Grade 304 Stainless Steel (1.4301 X 5Cr Ni 1810)
- Tested to 80,000 cycles
- VersionHold-in feature holds the closed drawer in
- Type of pull out
- Full extension
Area of application
- Suitable for corrosive, external or environmentally sensitive applications such as refrigeration, kitchens, boats and medical equipment
- Holding function
- Hold-in
- Removing the running track
- without release lever
- Dim. (W x H)
- 192 mm
Order reference
- Order Hospa Ø 4.0 countersunk screws separatelyFixings: Max. head height 2.5 mm, Ø 9.6 mm
- Additional information attributes
- Weights limit per pair based on length, weight limits reduce by 75% if flat mounted
The 0330 BB Side Drawer Runner Full 50kg 300mm HGSS (product code 422.39.030) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Grade 304 stainless steel (1.4301 x 5Cr Ni 1810), it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 422.39.030 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 422.39.030
- Material
- Grade 304 stainless steel (1.4301 x 5Cr Ni 1810)
- Pack Quantity
- 5 Each
Out of Stock
Back in stock: 21/10/2026
£179.68
Ex. VAT: £149.73
Sold in packs of 5 — £898.38 per pack
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 0 packs | £179.68 | — |
| 1 – 1 packs | £179.68 | — |
| 2+ packs | £159.71 | Save 11% |
- Technical Specifications
- Dimensions
| Material | Grade 304 stainless steel (1.4301 x 5Cr Ni 1810) |

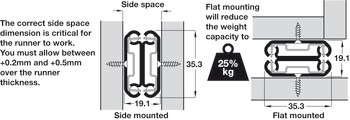

| Installation | Side or base mounted32 mm drilling pattern |
| Width | 192 mm |
