Symo3000 Piccolo Nova Case 15mm LH NP - Zinc Alloy Nickel Plated
Symo3000 Piccolo Nova Case 15mm LH NP - Zinc Alloy Nickel Plated
- RefinementNickel plated
Area of application
- For divided profile rod Ø 6 mmFor cylinder cores that are inserted from the front on site
- Please note that the pivot rods must be cut to the required size when designing the cabinet and choosing the accessories for the espagnolette lock.With the existing internal cabinet height ⓒ and installing the espagnolette lock at half height, the upper rod dimension is ⓐ and the lower rod dimension is ⓑ. Housing centre ⓓ – 25 mmDue to the three different backsets (15, 25 and 40 mm), identical gap sizes can be achieved for corner cabinets and rows of cabinets with the same drilling pattern.
- with key
- No
Order reference
- Order cylinder rosette and Hospa Ø 3.0 mm screws separately
The Symo3000 Piccolo Nova Case 15mm LH NP (product code 224.64.650) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Zinc alloy, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 224.64.650 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 224.64.650
- Material
- Zinc alloy
- Colour / Finish
- Nickel plated
- Pack Quantity
- 1 Each
177 In stock
£6.14
Ex. VAT: £5.12
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £6.14 | — |
| 5 – 9 | £5.83 | Save 5% |
| 10 – 19 | £5.53 | Save 10% |
| 20+ | £4.91 | Save 20% |
- Technical Specifications

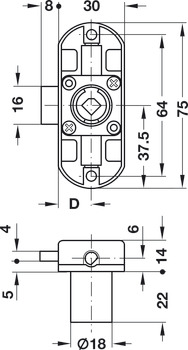

- Dimensions
| Material | Zinc alloy |
| Colour/Finish | Nickel plated |
| Installation | For screw fixing; reference |
| Backset | 15 mm |
| Cylinder housing length | 22 mm |
