Symo3000 Cent Rotary Lock Sgl 22/12mm NP - Zinc Alloy
Symo3000 Cent Rotary Lock Sgl 22/12mm NP - Zinc Alloy
Area of application
- For on-site installation of cylinder coresFor installation in the front panel
- Version
- With lifting pin
- Cylinder Ø
- 18 mm
- The cylinder cores adapt flexibly to the locking plan requirements and can be installed on site. The cylinder cores are inserted without tools using the key. Additions and modifications can be implemented easily at any time by exchanging the cores.
- with key
- No
Order reference
- Order Symo 3000 cylinder cores and Hospa Ø 3.5 mm countersunk screws
- Additional information attributes
- The cylinder cores adapt flexibly to the locking plan requirements and can be installed on site. The cylinder cores are inserted without tools using the key.
The Symo3000 Cent Rotary Lock Sgl 22/12mm NP (product code 234.98.650) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Zinc alloy, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 234.98.650 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 234.98.650
- Material
- Zinc alloy
- Pack Quantity
- 1 Each
213 In stock
£3.84
Ex. VAT: £3.20
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £3.84 | — |
| 10 – 19 | £3.65 | Save 5% |
| 20 – 49 | £3.46 | Save 10% |
| 50+ | £3.07 | Save 20% |

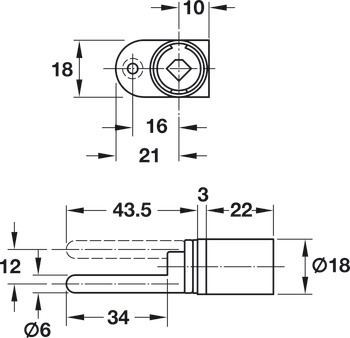

- Technical Specifications
- Dimensions
| Material | Zinc alloy |
| Closure travel | 180° |

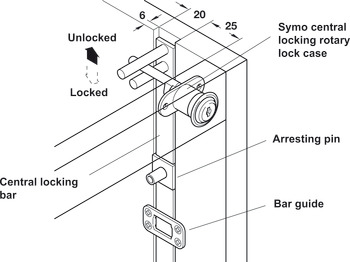

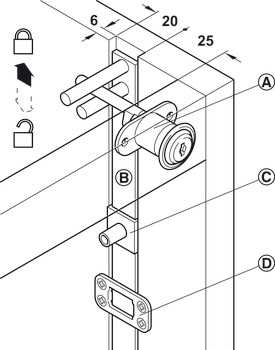

| Installation | For installation in the front panelfor screw fixing; reference |
| Cylinder shape | prepared for round cylinder |
| Diameter | 18 mm |
| Cylinder housing length | 22 mm |
