Cylinder Cam Lock Crnk 22mm Differ Dir.1 - Zinc Alloy
Cylinder Cam Lock Crnk 22mm Differ Dir.1 - Zinc Alloy
- 90° with key trap; key can only be removed in locked position180° without key trap; key can be removed in locked and unlocked positionClosure directions can be altered by re-positioning the cam, but always moving in the same direction:Closure direction A can be altered to D, F or GClosure direction B can be altered to C, E or HClosure direction 1 can be altered to 2 - 8
- For use with 0.8-2.5 mm sheet metalWithout key trap; key can be removed in locked and unlocked position
- Locking systemStandard profile
- Closing direction1 (2 – 8)
- For door thickness≥ 0.8 – ≤ 2.5 mm
- Version
- with fixed plate cylinderWith cranked locking cam
- Type of locking
- with 6 plate levers
- with key
- Yes
- Additional information attributes
- No master key possible
The Cylinder Cam Lock Crnk 22mm Differ Dir.1 (product code 234.64.400) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Zinc alloy, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 234.64.400 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 234.64.400
- Material
- Zinc alloy
- Pack Quantity
- 1 Each
127 In stock
£11.02
Ex. VAT: £9.18
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 1 | £11.02 | — |
| 2 – 4 | £10.43 | Save 5% |
| 5+ | £9.28 | Save 16% |
- Technical Specifications
| Material | Zinc alloy |
| Closure travel | 180° (reversible, without key trap) |
| Supplied with | 1 Cam lock2 Keys1 Locking cam (pre-mounted)1 Hexagonal nut1 Lock washer |

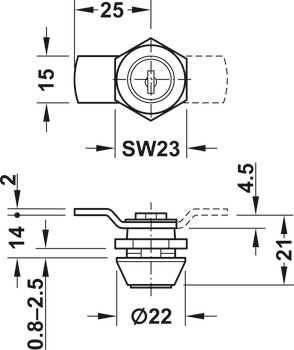

| Installation | For screw fixing with hexagonal nut(aperture pattern 18.1 x 15.7 mm) |
| Cylinder shape | round cylinder |
