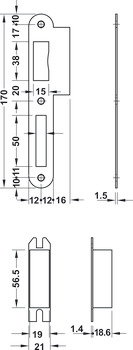

• Latchbolt operated by lever handles, deadbolt operated by cylinderCase: Steel, 15 mm wideForend: Square or radius. Stainless steel, 24 mm wideStrike plate: Square, flat. Included. Stainless steelLatchbolt follower: 8 mm. For use with sprung or unsprung furnitureDeadbolt follower: Euro profile cylinderDIN left and DIN right, reversibleHoled for bolt through furniture at 38 mm centres
• Certified in compliance with EN 12209:200372 mm lock centresApproved CF 5395 CertifireSuitable for use in FD30/60 & 90 minute Timber fire doors when fitted with the accompanying fire protection intumescent kit. These cylinder locks have been tested on a min. 44 mm thick timber door for 30 mins fire resistance or min. 54 mm thick doors for 60 mins fire resistanceCE markedTested in accordance with BS EN 12209
• Lock typePC
• Distance72 mm
• Door constructionUnrebated
• MountingDIN left/right (reversible)
• Latchbolt versionStandard latch
• For door type
• Revolving door, Fire resistant and smoke control doors
• Version
• Strike plate with bolt pocket
• Version
• With key action
• Forend length
• 235 mm
• Deadbolt version
• Standard deadbolt

Standard

• Certified in compliance with EN 12209: 2003
• Classification in compliance with EN 12209
• 3|S|8|1|0|F|2|B|C|2|0
• Häfele Lifetime Guarantee
• 10 years

Order reference

• Cylinder not included, please order separately
• Warranty/guarantee information
• 1808
