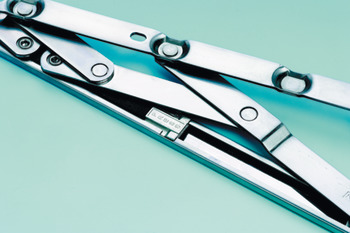

Friction Hinge Restrictor for Side or Top Hung Windows Stainless Steel or Brass For side hung windows length 305 mm (12") max. vent weight 22 kg opening angle 60° - Stay Parts: Ferritic Stainless Steel Grade 430Friction Slide: Glass- Filled NylonAdjustment Screws: Brass
Friction Hinge Restrictor for Side or Top Hung Windows Stainless Steel or Brass For side hung windows length 305 mm (12") max. vent weight 22 kg opening angle 60° - Stay Parts: Ferritic Stainless Steel Grade 430Friction Slide: Glass- Filled NylonAdjustment Screws: Brass
- Designed to protect against accidental fallingMechanism that restricts the initial window opening to 100 mmComplies with BS 8213 Part 1: 2001 'Code of Practice for Safety in use and cleaning' and BS EN 14351-1: 2006 'Load bearing capacity of safety devices'Designed to be unobtrusive, the opening catch is less tempting to childrenThe mechanism requires a certain length of strength and dexterity to operate and two hands are required co-ordinate opening, giving added protectionThe entire restrictor mechanism is integral to the hinge, eliminating the need for a separate restrictorPlease see cat. page for additional technical info.

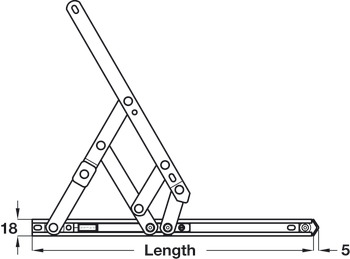

- Window friction hinges:Size and weight parameters are to be strictly observedPassed endurance assessment by the British Board AgreementTested to 30,000 cyclesWaterproof lubricant added to each pivot point during manufactureSlotted fixing holes in the base channel and sash bar, with finial fixing holes in each componentStacking height 13 mm on standard and 14 mm heavy duty (17/18 mm available to order, subject to quantity)Suitable for timber, PVCu and aluminium windowsFriction hinges should always be fixed with end-cap abutting the corner of the window frame (see diagram)Friction hinge mounting faces must be flat, parallel and provide the correct cavity clearance 13/14 mm or 17/18 mm (-0 mm +1 mm)Centre line of both vent and frame should be coincidental and parallelAfter installation, the friction screw should be adjusted to obtain the desired resistanceAll windows hardware will require regular inspection, cleaning and maintenance in order to operate in the manner for which they have been designed10 year performance guarantee
- For window typeFor side-hung window
The Friction Hinge Restrictor for Side or Top Hung Windows Stainless Steel or Brass For side hung windows length 305 mm (12") max. vent weight 22 kg opening angle 60° (product code 911.59.128) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Stay parts: Ferritic stainless steel grade 430Friction slide: Glass- filled nylonAdjustment screws: Brass, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 911.59.128 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 911.59.128
- Material
- Stay parts: Ferritic stainless steel grade 430Friction slide: Glass- filled nylonAdjustment screws: Brass
- Pack Quantity
- 1 Each
14 In stock
£19.23
Ex. VAT: £16.02
- Technical Specifications
- Dimensions
| Material | Stay parts: Ferritic stainless steel grade 430Friction slide: Glass- filled nylonAdjustment screws: Brass |
| Length | 305 mm |
