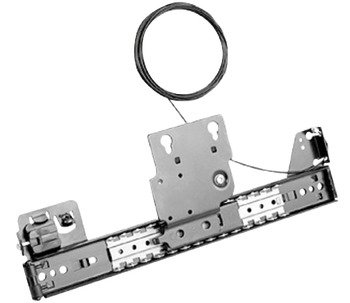

Pivot Sliding Door Runners for Cabinet Doors Accuride 1432 For vertical use Installed length 557 mm extension length 445 mm - /finish
Pivot Sliding Door Runners for Cabinet Doors Accuride 1432 For vertical use Installed length 557 mm extension length 445 mm - /finish
- Cable system for synchronised slide operationOrder hinges and carrier strip set separately
- Installed length = Minimum carcase depth required to install fittingExtension length = Maximum door width can be withdrawn inside the carcaseOrder qty: 1 pair per door
- SetSet with tracks
- Number of doors1
- For door width915 – 2,000 mm
- For door height255 – 660 mm
- For door weight≤34 kg
- VersionHinge carrier strip set can be shortenedWith cable system for synchronised running of left and right runners
Area of application
- Inset and overlay cabinet doors, depending on hinges used
- For door material
- Wood
- For door thickness
- 19 – 32 mm
- Steel, Black, Zinc plated
Order reference
- Hinge carrier strips and hinge sets to be ordered separately
Configuration required
Configuration required
Configuration required
- Additional information attributes
- ust not be subjected to loads in the open, not pushed-in position.It must be continuously guided and pushed-in by hand during the entire opening procedure.
The Pivot Sliding Door Runners for Cabinet Doors Accuride 1432 For vertical use Installed length 557 mm extension length 445 mm (product code 408.24.556) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from /finish, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 408.24.556 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 408.24.556
- Material
- /finish
- Pack Quantity
- 1 Each
40 In stock
£113.97
Ex. VAT: £94.98
- Technical Specifications
| Material | /finish |
| Supplied with | Synchronising cable |
| Installation | Screw fixing |
