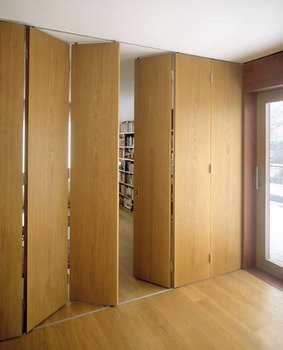

Fitting Set for Folding Interior Doors Hawa-Variofold 80/H Top hung system Set 1 - Basic set (2 doors) with pivot bearing and guide - /finish
Fitting Set for Folding Interior Doors Hawa-Variofold 80/H Top hung system Set 1 - Basic set (2 doors) with pivot bearing and guide - /finish
- For residential or commerical top hung end wall folding wall systemsA pivot bearing secures the first panel in the set, the others attach by means of stainless steel hinges that bring the panels closer together and minimise panel stacking requirementsLeft and right hand, inwards or outwards opening installations all use the same componentsA communicating pivot door can be added to the panel stack or the opposing endLight and quiet runningPanel stack stores compactlyInstallation drawing reference 19586
- SpringCorner suspension
- For door material
- Wood
- Number of doors per system max.
- >4
- For door thickness
- 35 – 45 mm
- For door weight
- ≤80 kg
- For door width
- 500 – 900 mm
- System width 1-sided
- 6 m
- System width 2-sided
- 12 m
- Running system
- Concealed in track
- Controller installation options
- Ceiling installation
- Adjustment facility
- Version
- clear threshold guide,Hinge with heavy duty bearings
- Support flange connection
- brackets
- Aluminium
- Plastic
Order reference
- Please order rails, hinges and accessories separately.
- Additional information attributes
- Bottom guide tracks must be used for Hawa-Variofold systems. For systems with 2 doors on both sides and up to a width of max. 3.6 m the bottom guide track is not required.
The Fitting Set for Folding Interior Doors Hawa-Variofold 80/H Top hung system Set 1 - Basic set (2 doors) with pivot bearing and guide (product code 943.29.010) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from /finish, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 943.29.010 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 943.29.010
- Material
- /finish
- Pack Quantity
- 1 Each
1 In stock
£2,066.32
Ex. VAT: £1,721.93
- Technical Specifications
- Dimensions
| Material | /finish |
| Supplied with | 1 top pivot bearing1 folding/access door catch, adjustable1 running gear with support carriage and screw M105 support profiles, pre-drilled1 pressure bearing for guide track, with follower1 guide piece for guide track with zero clearance5 cover caps for support profile1 height adjustment spanner2 spanners for suspension carriage |
| Height | adjustment: ±3 mm |
