• For construction of side mounted foldaway beds according to customers own requirementsMax. installation height 1500 mmConsists of1 pair x Folding fittings with pivot bearings and positioning bolts for gas pistons2 x Securing brackets1 x Safety stop with leverGas pistons must be ordered separately depending on the weight of the bed. 2 gas pistons are required per bed fitting

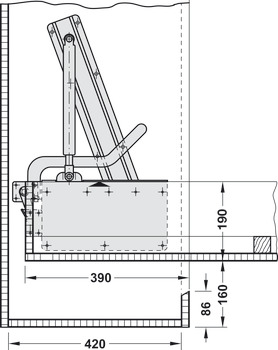

• It is essential for foldaway beds to be secured against tipping, according to EN 1129, (check the floor suitability). Two safety stops are enclosed with every fitting setBed weight = total weight of the bed box, slatted frame, mattress and beddingInternal cabinet height= Mattress width + bed frame thickness (x2) + 125 mmInternal cabinet width= Mattress length + bed frame thickness (x2) + 54 mmA gap of 4mm is required on all sides between the cabinet and front panel

Area of application

• Foldaway beds

Order reference

• Gas pistons to be ordered separately

Configuration required

• Additional information attributes
• Bed weight = total weight of the bed box, slatted frame, mattress and bedding.Two bed boxes must be mounted next to each other to make a double bed. Not compatible with centre support.
