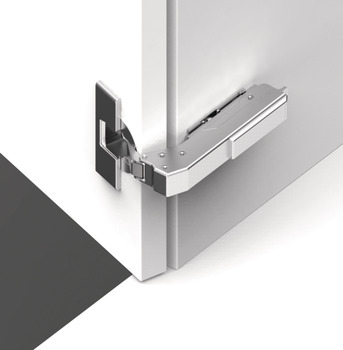

Concealed Post Hinge for Blind Corner Applications Tiomos 110° Click on arm Screw fixing cup without soft close - Cup: Steel, Hinge Arm: Zinc Alloy Nickel Plated
Concealed Post Hinge for Blind Corner Applications Tiomos 110° Click on arm Screw fixing cup without soft close - Cup: Steel, Hinge Arm: Zinc Alloy Nickel Plated
- For wooden doors
- With or without soft closing mechanism integrated in hinge arm
- Area of applicationFor wooden doors
- Concealed hinge versionBlind corner application
- Crank typeStraight
- For door materialWood

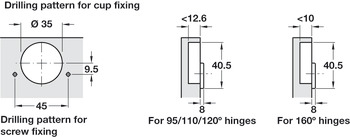

- Door processing for assemblywith cup drilling
- Cup drilling Ø35 mm
- Cup fixingfor screw fixing
- Adjustment facilitySide adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2 – 3 mm, Height adjustment depending on mounting plate
Order reference
- Mounting plate 348.38.513 and Hospa Ø 3.5 mm countersunk screws to be ordered separately
- 1486
- Additional information attributes
- Use mounting plate with 3 mm for flush front design of door and blind corner.
The Concealed Post Hinge for Blind Corner Applications Tiomos 110° Click on arm Screw fixing cup without soft close (product code 348.37.600) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Cup: Steel, Hinge arm: Zinc alloy, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 348.37.600 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 348.37.600
- Material
- Cup: Steel, Hinge arm: Zinc alloy
- Colour / Finish
- nickel plated
- Pack Quantity
- 1 Each
45 In stock
£11.69
Ex. VAT: £9.74
- Technical Specifications
- Dimensions
| Material | Cup: Steel, Hinge arm: Zinc alloy |
| Colour/Finish | nickel plated |
| Opening angle | 110° |
| Installation | Door to cabinet without tools (clip system) |
| Cup drilling depth | 12.6 mm |
