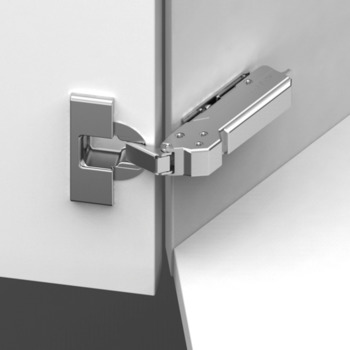

Concealed Cup Hinge 110° for 45° Angle Click on Arm Tiomos Screw fixing cup 45/9.5 with soft close - Cup: Steel, Hinge Arm: Zinc Alloy Nickel Plated
Concealed Cup Hinge 110° for 45° Angle Click on Arm Tiomos Screw fixing cup 45/9.5 with soft close - Cup: Steel, Hinge Arm: Zinc Alloy Nickel Plated
- For 30° angle applications
- Up to 24 mm (for door thicknesses 22 mm and above, a trial fitting is recommended)
- Concealed hinge versionBlind corner application
- Crank typeCranked
- For door materialWood
- Door processing for assemblywith cup drilling
- Corner applications45°
- Cup drilling Ø35 mm
- Adjustment facilitySide adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2 – 3 mm
- 1488
- Additional information attributes

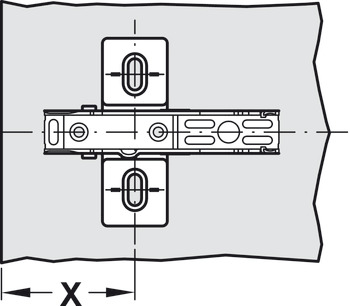

- Dimensions in drawings and tables are calculated using factory settings and for mounting plate distance 2 mm
The Concealed Cup Hinge 110° for 45° Angle Click on Arm Tiomos Screw fixing cup 45/9.5 with soft close (product code 348.35.805) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Cup: Steel, Hinge arm: Zinc alloy, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 348.35.805 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 348.35.805
- Material
- Cup: Steel, Hinge arm: Zinc alloy
- Colour / Finish
- nickel plated
- Pack Quantity
- 1 Each
83 In stock
£9.83
Ex. VAT: £8.19
- Technical Specifications
- Dimensions
| Material | Cup: Steel, Hinge arm: Zinc alloy |
| Colour/Finish | nickel plated |
| Opening angle | 110° |
| Drilling pattern | 45/9.5 |
| Cup drilling depth | 12.6 mm |
