270/240D Hinge 5mm ExAxle 7.0mm 13/19
270/240D Hinge 5mm ExAxle 7.0mm 13/19
- Ø 5 mm axle, 47 mm length0 mm door offset from 140° opening angle270° opening angle for full overlay, 240° for half overlayWith catch
- High quality hinge, tested to ANSI Grade 1 (100,000) cyclesFor thin doorsFor HPL panels
- Maximum project quality in compliance with ANSI grade 1 (100,000 cycles)
- Area of applicationFor thin doorsfor laminate panels (HPL)
- Concealed hinge versionFull overlay/half overlay mounting
- For door materialLaminate
- Door processing for assemblyWithout
- For door thickness≥ 10 – ≤ 13 mm
- Side panel thickness10 – 13 mm
- Knuckle length47 mm

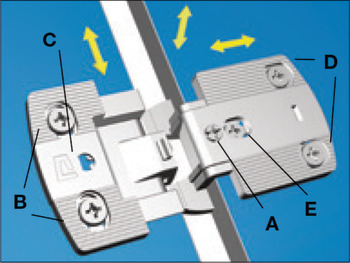

- Adjustment facilitySide adjustment: 1 mm, Height adjustment: -2 – 2 mm, Height adjustment in cup part via eccentric
- Additional information attributes
- Other colours available on request
The 270/240D Hinge 5mm ExAxle 7.0mm 13/19 (product code 344.75.770) is a Hafele engineered product built for dependable, precise performance in everyday use.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 344.75.770 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 344.75.770
- Pack Quantity
- 1 Each
160 In stock
£24.07
Ex. VAT: £20.06
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 1 | £24.07 | — |
| 2 – 4 | £22.81 | Save 5% |
| 5+ | £20.28 | Save 16% |
- Technical Specifications
- Dimensions
| Opening angle | 270° |
| Supplied with | HingeFixing material (specially coated self-tapping screws) |
| Installation | For corner or centre panel mounting, 6 mm gap |
| Depth | adjustment via horizontal slots in side component |
| Knuckle diameter | 5 mm |
