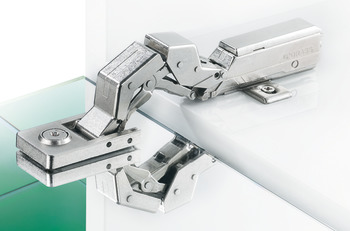

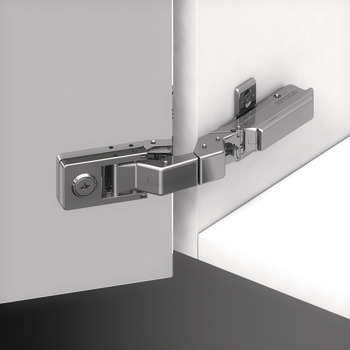

Concealed Hinge 125° for Glass/Mirror Doors Tiomos Mirro Glass thickness 3-8 mm Tipmatic - Zinc Alloy Nickel Plated
Concealed Hinge 125° for Glass/Mirror Doors Tiomos Mirro Glass thickness 3-8 mm Tipmatic - Zinc Alloy Nickel Plated

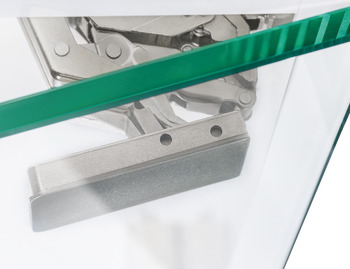

- Quick final assembly without glass drillingFor mirror doors with thickness 3–8 mmHigh overlay up to 19 mm
- With integrated, adjustable soft closing mechanism with 3 settings or with opening mechanism
- Area of applicationFor mirror doors with thickness 3–8 mm
- Crank typeCranked

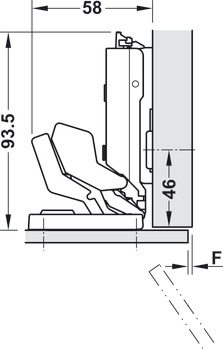

- Door processing for assembly
- For glass thickness3 – 8 mm
- Cup fixingfor screw fixing
- Adjustment facilitySide adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2 – 3 mm, Height adjustment via mounting plate
Order reference
- Please order mounting plate Cat. No. 348.38.551 separately.
- Additional information attributes
- All reveals must be at least 1.5 mm, otherwise there is a risk of breakage.
The Concealed Hinge 125° for Glass/Mirror Doors Tiomos Mirro Glass thickness 3-8 mm Tipmatic (product code 348.41.440) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Zinc alloy, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 348.41.440 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 348.41.440
- Material
- Zinc alloy
- Colour / Finish
- nickel plated
- Pack Quantity
- 1 Each
44 In stock
£10.42
Ex. VAT: £8.68
- Technical Specifications
| Material | Zinc alloy |
| Colour/Finish | nickel plated |
| Opening angle | 125° |
| Installation | Fastening to door by gluing of a zinc alloy adapterof the door to the hinge by sliding onto the adapter and using a camdoor to cabinet without tools (clip system) |
