Tiomos 120D Hinge Clk HO SF w SC NP - Steel
Tiomos 120D Hinge Clk HO SF w SC NP - Steel
- For standard applicationsØ 35 mm cup
- Convenient opening angle with excellent overlay and gap dimensions up to 24 mm door thickness
- VersionWith soft closing mechanism
- Concealed hinge versionHalf overlay
- Crank typeCranked
- Door processing for assemblywith cup drilling
- Cup drilling Ø35 mm
- Cup fixingfor screw fixing
- Adjustment facilitySide adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2 – 3 mm
Order reference
- Order Hospa Ø 3.5 mm countersunk screws separately
- Additional information attributes

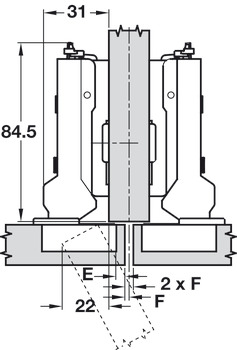

- The dimensions specified in the drawings are calculated with a mounting plate distance of 2 mm.
The Tiomos 120D Hinge Clk HO SF w SC NP (product code 348.36.802) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Steel, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 348.36.802 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 348.36.802
- Material
- Steel
- Pack Quantity
- 1 Each
273 In stock
£7.96
Ex. VAT: £6.63
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £7.96 | — |
| 5 – 9 | £7.56 | Save 5% |
| 10 – 24 | £7.16 | Save 10% |
| 25+ | £6.37 | Save 20% |
- Technical Specifications
- Dimensions
| Material | Steel |
| Opening angle | 120° |
| Drilling pattern | 45/9.5 |
| Cup drilling depth | 12.6 mm |
