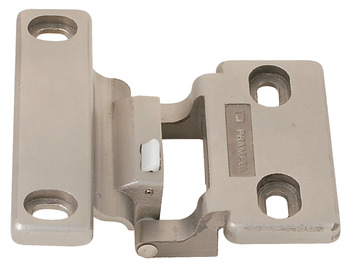

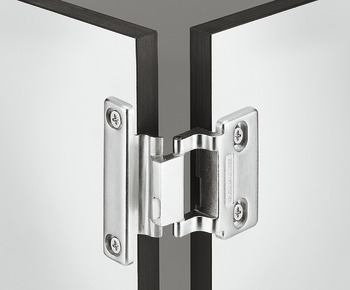

Specialist Hinge 240° Grade 304 Stainless Steel for Thin Doors With automatic closing spring Half overlay mounting screw fixing
Specialist Hinge 240° Grade 304 Stainless Steel for Thin Doors With automatic closing spring Half overlay mounting screw fixing
- For cabinet thickness 13 mm
- Side adjustment –1 mmHeight adjustment ± 2 mm
Area of application
- For laminate (HPL) doors, 6 mm gap
- Version
- Half overlay mounting
- Door offset
- 0 mm at 140° opening angle
- Door overlay
- 3.5 mm
- Flange shape
- rounded
- Gap
- 6 mm
- For door thickness
- ≥ 10 – ≤ 13 mm
Order reference
- Order Hospa Ø 3.5 mm countersunk screws separately
- Additional information attributes
- The suitability of the stainless steel that is used for the intended application area must be assured by separate testing from case to case.
The Specialist Hinge 240° Grade 304 Stainless Steel for Thin Doors With automatic closing spring Half overlay mounting screw fixing (product code 344.75.051) is a Hafele engineered product built for dependable, precise performance in everyday use.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 344.75.051 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 344.75.051
- Pack Quantity
- 1 Each
74 In stock
£60.48
Ex. VAT: £50.40
- Technical Specifications
| Supplied with | 1 hinge1 set of fixing material |
| Installation | For screw fixing |
