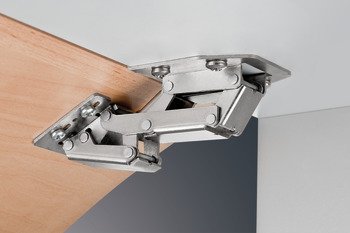

Swing Up 90D Hinge SF w SC Overlay Mnt - Steel Nickel Plated
Swing Up 90D Hinge SF w SC Overlay Mnt - Steel Nickel Plated
- Automatic closing and opening mechanism
- Pull adjustable via adjusting screw (with hinge for face frame mounting)Side adjustment via slotsHeight adjustment via slots, (CH 600, CH 300, CH 150) or adjusting screw (CH 350)
- Area of applicationFor lightweight flaps
- For door materialWood
- For lid thickness15 – 16 mm
- For lid width≤ 800 mm
- For lid height≤ 340 mm
- For lid weight≤ 2.1 kg
- Adjustment facilityheight, side
- For lid weight max.
- 2.1 kg
Order reference
- Order Hospa Ø 4.0 mm pan head screws separately
- Additional information attributes
- The pull is adjustable in accordance with the flap weight; different hinge types for different flap weights are therefore not requiredMinimum of 2 required per flap
The Swing Up 90D Hinge SF w SC Overlay Mnt (product code 356.36.607) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Steel, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 356.36.607 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 356.36.607
- Material
- Steel
- Colour / Finish
- nickel plated
- Pack Quantity
- 1 Each
3,334 In stock
£4.28
Ex. VAT: £3.57
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £4.28 | — |
| 10 – 29 | £4.07 | Save 5% |
| 30 – 49 | £3.85 | Save 10% |
| 50+ | £3.42 | Save 20% |
- Technical Specifications
| Material | Steel |
| Colour/Finish | nickel plated |
| Opening angle | 90° |
| Installation | for screw fixing |
