Ixconnect Drill Jig Variantool-N 1167mm - Aluminium Rail With Non-slip Coating Red, Anodized, Anodized
Ixconnect Drill Jig Variantool-N 1167mm - Aluminium Rail With Non-slip Coating Red, Anodized, Anodized
- The jig allows for an inset distance from the front carcase edge of 37 mm and from the back edge of 69 mmIntegral sliding positioning tabs ensure consistent drilling locationsAn ideal addition to the other Unitool drilling jigs, for drilling series of holes in a line or groups of holes according to requirements
- Product typeDrilling Jig
- VersionSurface drilling jig for additional drill holes between series drilled holes,Corresponds to 37 drill holes at intervals of 32 mm
Suitable for

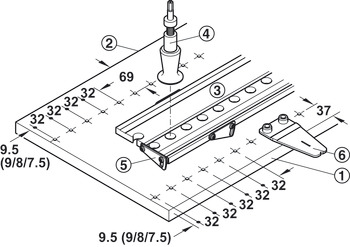

- Series drilled holes, optionally with Ø 3.5 mm (Ø 8 mm and Ø 10 mm for dowel holes),Drilling distance from cabinet front edge 37 mm, 69 mm from cabinet rear edge, without turning the drilling jig due to stop plates
- Häfele Lifetime Guarantee
- 25 years
Order reference
- Please order depth gauge and marking gauge separately.
- Warranty/guarantee information
Configuration required
The Ixconnect Drill Jig Variantool-N 1167mm (product code 001.27.016) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Aluminium rail with non-slip coating, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 001.27.016 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 001.27.016
- Material
- Aluminium rail with non-slip coating
- Colour / Finish
- Red, anodized, Anodized
- Pack Quantity
- 1 Each
6 In stock
£291.31
Ex. VAT: £242.76
- Technical Specifications
- Dimensions
| Material | Aluminium rail with non-slip coating |
| Colour/Finish | Red, anodized, Anodized |
| Supplied with | 1 Profiled aluminium rail1 Surface drilling jig (L x W x H) 550 x 35 x 10 mm8 Stop plates for 37 mm and 69 mm edge distances2 Locating pins for ⌀ 3, 5 mm drill holes |
| Length | 1,172 mm |
