Flap-Ex Flap Hinge for Door Fronts Hinged at Base Particularly suitable for installation in cabinets with front flaps White plastic
Flap-Ex Flap Hinge for Door Fronts Hinged at Base Particularly suitable for installation in cabinets with front flaps White plastic
- Suitable for installation in front flap cabinets min. 820 mm high, min. 400 mm wide with min. installation depth 270 mm
- Important: Designed to support a chipboard front with maximum dimensions 590 mm high, 400 mm wide, 19 mm thick, maximum weight when full 5 kg
- Model series
- Flap-Ex
Order reference
- For installation of the front flap, 2 cup hinges and a Mini Latch catch should be ordered seperatelyOrder Varianta Ø 5 raised head and Hospa Ø 4.0 mm countersunk screws separately
Configuration required
Configuration required
Configuration required
Configuration required
- Additional information attributes

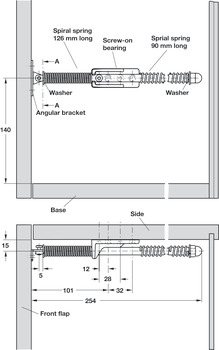

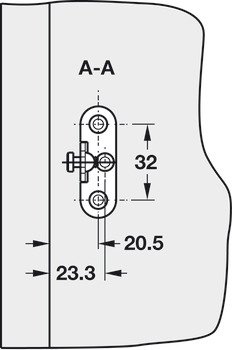

- Mounting instructions:Screw fix angular bracket to front panel and bearing to side panelPush rod into bearing between the two spiral springs
The Flap-Ex Flap Hinge for Door Fronts Hinged at Base Particularly suitable for installation in cabinets with front flaps White plastic (product code 365.52.708) is a Hafele engineered product built for dependable, precise performance in everyday use.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 365.52.708 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 365.52.708
- Pack Quantity
- 1 Each
17 In stock
£13.32
Ex. VAT: £11.10
- Technical Specifications

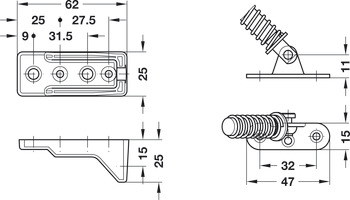

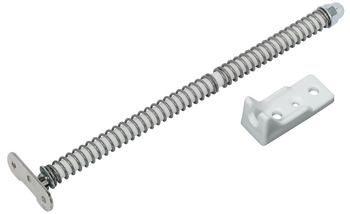

| Supplied with | 1 Angular bracket1 Rod with plastic sleeve2 Washers2 Spiral springs: front 126 mm long, rear 90 mm long1 Bearing, packed loose |
