• Floor spring mechanism to suit single and double action doors up to 1400 mm wide with flat-tapered, removable interlocked spindleNot suitable for use on fire doorsClosing force size 3-6Closing range from 175° for single action applicationsAdjustable closing force, adjustable closing speed, fixed backcheck and variable hold-open, engageable/disengageable 80-120°Supplied with cement box - adjustable position (6 mm vertical, 10 mm lateral and 10 mm length)Safety valve prevents overloadingFlexible adjustable closing speed for 170-80º with two functions:Open - closing speed 170-80ºVariable hold open 120-80ºCE markedTested in accordance with BS EN 1154: 1997

Area of application

• For single action and double action doors
• Version
• with fixed backcheck,continuous hold-open function,can be enabled and disabled,Safety valve against overloading
• Adjustment facility
• Closing force, three stage closing speed including selectable hold-open and latch action
• Closing force
• 3-6 in compliance with EN 1154

Standard

• Certified in compliance with EN 1154:1996/A1:2002
• Grade
• 3|8|3 – 6|0|1|4

Order reference

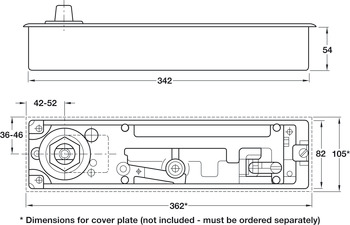

• Please order cover plate Cat. No. 932.10.061 separately.
• Additional information attributes
• Hold open @ 90º, not fire doors, adjustableHold open is effective from 85º through to 165º for single action or 80º to 130º double action
