• Specification:Concealed fixing cam action door closer with concealed guide rail arm for doors up to 1100 mm wide with adjustable closing force and latching action closing speed and adjustable hydraulic backcheckSuitable for doors over 40 mm thickHold open angle infinitely variable between 80° and 120°Features:Cam action closerFully concealed guide rail armClosing force adjustable (size range EN 2-4)Adjustable closing speedAdjustable backcheckAdjustable latching speedCertification:Tested and approved to BS EN 1154: 1997Tested to conform with CE requirementsCertifire approved; certificate no. CF242 60 minsElectrical data:Operating voltage 24V DC ± 10%Connecting load 100mAMax. permissable ripple 20%Rating 100%Enclosure rating IP43A suitable switch should be installed for test purposes

Area of application

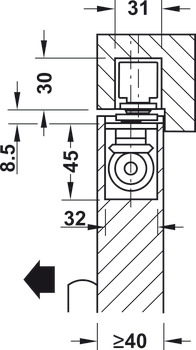

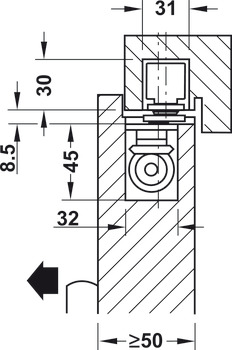

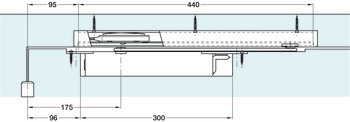

• Door closer and guide rail for concealed installation in door
• Version
• with electromechanical hold-open function
• For number of doors
• 1-leaf doors
• Adjustment facility
• Closing force and closing speed continuously adjustable,Latching action hydraulically adjustable,hydraulic soft opening mechanism adjustable
• Closing force
• 2–4 in accordance with EN 1154
• For door width
• ≤1,100 mm
• For door thickness
• ≥ 42 mm
• For door weight
• ≤130 kg
• Hold-open angle
• 80 – 120 °

Standard

• Certified in compliance with EN 1154:1996/A1:2002
• Grade
• 3|8|2 – 4|1|1|4
• Fire resistance and smoke controlFire resistanceYesFS standardTested for fire resistant and smoke control doors.
