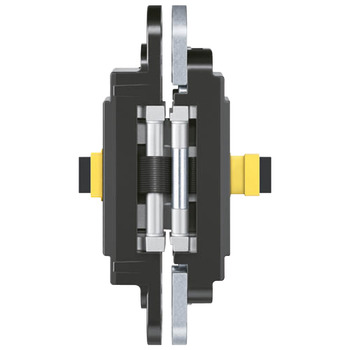

Tectus TE540 3D 180D Energy Hinge MC Fire Rated - Aluminium, Steel, Zinc, Die-cast
Tectus TE540 3D 180D Energy Hinge MC Fire Rated - Aluminium, Steel, Zinc, Die-cast
- With permanent energy transferMaintenance free friction bearingsSuitable for left or right hand applicationsMax. door weight adjusted 120 kgFD 30 fire rated when installed with intumescent kit 924.19.132
Area of application
- For wooden, steel or aluminium framesFor flush doors
- Door thickness
- ≥40 mm
- Adjustment facility
- 3-way continuous adjustment: Vertical: ± 3 mm, Horizontal: ± 3 mm, Depth: ± 1.0 mm
The Tectus TE540 3D 180D Energy Hinge MC Fire Rated (product code 924.17.241) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Aluminium, Steel, Zinc, Die-cast, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 924.17.241 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 924.17.241
- Material
- Aluminium, Steel, Zinc, Die-cast
- Pack Quantity
- 1 Each
Out of Stock
Back in stock: 12/10/2026
£568.44
Ex. VAT: £473.70
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 1 | £568.44 | — |
| 2 – 3 | £538.52 | Save 5% |
| 4+ | £478.68 | Save 16% |
- Technical Specifications
| Material | Aluminium, Steel, Zinc, Die-cast |
| Opening angle | 180 ° |
| Supplied with | Fixings |
