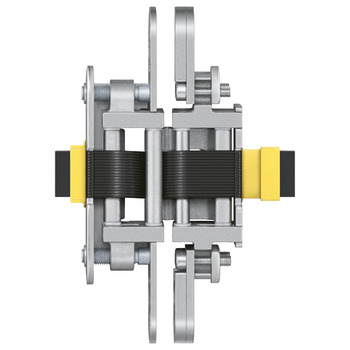

3D Hinge 180° Mild Steel Tectus TE 527 3D Energy 3-way continuous adjustment Matt nickel
3D Hinge 180° Mild Steel Tectus TE 527 3D Energy 3-way continuous adjustment Matt nickel
- With permanent energy transferMaintenance free friction bearingsSuitable for left or right hand applicationsMax. adjusted door weight 120 kg
Area of application
- For wooden, steel or aluminium framesFor flush doors
- Door thickness
- ≥40 mm
- Adjustment facility

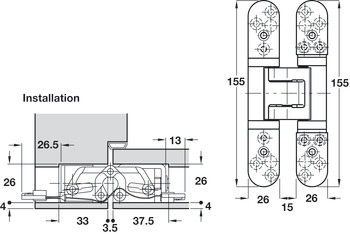

- 3-way continuous adjustment: Vertical: ± 3 mm, Horizontal: ± 3 mm, Depth: ± 1.0 mm
Order reference
- FD 60 fire rated when installed with intumescent kit Cat. No. 924.17.697, to be ordered separately
The 3D Hinge 180° Mild Steel Tectus TE 527 3D Energy 3-way continuous adjustment Matt nickel (product code 926.19.036) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Mild Steel, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 926.19.036 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 926.19.036
- Material
- Mild Steel
- Pack Quantity
- 1 Each
Out of Stock
Back in stock: 12/10/2026
£525.27
Ex. VAT: £437.72
- Technical Specifications
| Material | Mild Steel |
| Opening angle | 180 ° |
| Supplied with | Fixings |
