Single Door Flap Fitting Complete Set Free Space 1.11 90° or 107° opening angle Model C white - Housing: Plasticfront Fixing Bracket And Support Lever: Steel Front Fixing Bracket: Nickel Plated
Single Door Flap Fitting Complete Set Free Space 1.11 90° or 107° opening angle Model C white - Housing: Plasticfront Fixing Bracket And Support Lever: Steel Front Fixing Bracket: Nickel Plated
- A stay flap fitting for one-piece wooden flaps or flaps with aluminium framesThe Free Space’s compact size allows for more storage space in the cabinet, whilst its minimalist design will fit right in to the modern on-trendHinge-less stay flap fitting for more free room in all respectsExtremely powerful: A product series for the majority of the common flap size and weightsExtremely compact: Minimal appearance and more storage space in the futureExtremely gentle running characteristics making it a pleasure to useExtremely fast and time-saving processingExtremely adjustable: Four standard colours and a product series for handle-free applications
- Area of applicationFor standard stay flap applications with front height up to 650 mm
- Lid materialWood, Aluminium frame
- Flap typeone-piece
- For cabinet width≤1,800 mm
- For lid height650 mm
- For cabinet height225 – 650 mm
- Adjustment facilityHeight, side, tilting angle, holding power
- Model series
- Free Space 1.11
Order reference
- The choice of the stay flap fitting for front panels with handle depends on the cabinet height and flap weight including handle. Model selection see sample measurements table.Please order suitable screw set 372.27.600 for aluminium frame front panels from frame width 45 mm.We recommend to use the stronger fitting model when in doubt.
- Warranty/guarantee information
Configuration required
Configuration required
Configuration required
Configuration required
The Single Door Flap Fitting Complete Set Free Space 1.11 90° or 107° opening angle Model C white (product code 372.27.701) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Housing: Plasticfront fixing bracket and support lever: Steel, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 372.27.701 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 372.27.701
- Material
- Housing: Plasticfront fixing bracket and support lever: Steel
- Colour / Finish
- Front fixing bracket: Nickel plated
- Pack Quantity
- 1 Each
16 In stock
£22.59
Ex. VAT: £18.83
- Technical Specifications
- Dimensions
| Material | Housing: Plasticfront fixing bracket and support lever: Steel |
| Colour/Finish | Front fixing bracket: Nickel plated |
| Opening angle | : 90° or 107 °Adjustable holding powerUp and down adjustment+/- 2mmSide to side adjustment +/- 1.5mmTilt adjustment +/- 2mm |
| Supplied with | Set includes:1x Stay flap fitting set (1 piece each left/right)4x Fixing screws for front panel1 set of installation instructions with paper drilling template for side panel |
| Installation | Fitting for screw fixing with pre-mounted Euro screwfront panel fixing without tools, for sliding onto pre-mounted fixing screws; referenceFitting for screw fixing with pre-mounted Euro screw, front panel without tools, for sliding onto pre-mounted fixing screws. |

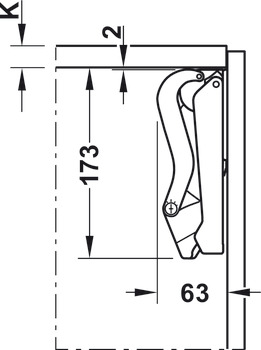

| Installation depth | 63 mm |
