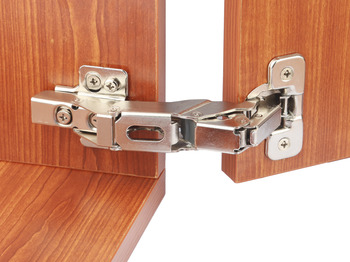

Concealed Cup Hinge 155° Full Overlay Mounting Quick Fixing Häfele Metalla 310 Without soft close - Steel
Concealed Cup Hinge 155° Full Overlay Mounting Quick Fixing Häfele Metalla 310 Without soft close - Steel
- Zero protrusionØ 35 mm cupAutomatic closing
- Min. cup drilling depth 12 mm
- Concealed hinge versionFull overlay
- Cup fixingfor screw fixing
- Adjustment facilitySide adjustment: ± 3 mm
- Häfele Lifetime Guarantee
- 25 years
Order reference
- For use with super compact cruciform mounting plates 311.71.500/502/504Order Hospa Ø 3.5 mm countersunk screws separately
The Concealed Cup Hinge 155° Full Overlay Mounting Quick Fixing Häfele Metalla 310 Without soft close (product code 311.63.739) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Steel, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 311.63.739 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 311.63.739
- Material
- Steel
- Pack Quantity
- 1 Each
5,521 In stock
£1.31
Ex. VAT: £1.09
- Technical Specifications
- Dimensions
| Material | Steel |
| Opening angle | 155° |

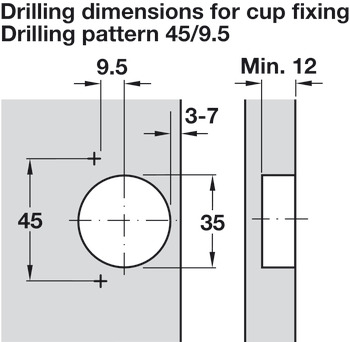

| Drilling pattern | 45/9.5 |
| Height | adjustment: ± 2 mm (via mounting plate) |
| Depth | adjustment: 2.5 mm |
| Cup drilling depth | 12 mm |
