Lever Handle Indicator and Lock Set with Large Safety Pattern Lever Handle Satin stainless steel finish
Lever Handle Indicator and Lock Set with Large Safety Pattern Lever Handle Satin stainless steel finish

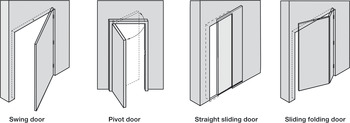

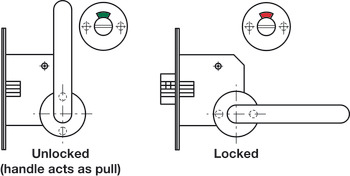

- This set is designed for use on swing, pivot, straight sliding and leaf and a half sliding/folding door setsWith the door in the unlocked position the handle will be upright with the indicator will show greenWhen locked the handle is moved to the horizontal position and the indicator will show red
- UnhandedEmergency release indicatorTurn operated claw bolt lockSelf adhesive instruction badge 'Depress lever to lock'Bolt through fixingsIt is recommended that a face fixed pull handle is mounted on the outer face

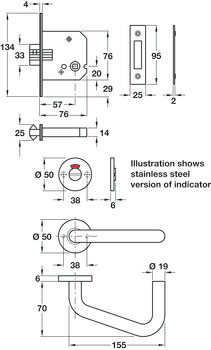

- Rose/escutcheon Ø
- 50 mm
- Additional information attributes
- Image shown is for anti-clockwise operation - for clockwise operation the lock will need to be installed upside down.
The Lever Handle Indicator and Lock Set with Large Safety Pattern Lever Handle Satin stainless steel finish (product code 911.78.019) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Stainless steel, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 911.78.019 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 911.78.019
- Material
- Stainless steel
- Pack Quantity
- 1 Each
3 In stock
£83.73
Ex. VAT: £69.77
- Technical Specifications
| Material | Stainless steel |
| Installation | Bolt through fixing |
